Fortify App

Pre Deployment Configuration

Keystore Generation

As of version 25.2.2-bb.0, the keystore is automatically generated by a Kubernetes Job during installation. This Job: - Runs as a Helm pre-install/pre-upgrade hook - Generates a self-signed certificate for the Fortify HTTPS server - Creates the required PKCS12 keystore - Stores everything in a Kubernetes Secret (fortify-ssc-secret)

Manual keystore creation is no longer required unless you need to use custom certificates.

Using Custom Certificates (Optional)

If you need to provide your own certificates instead of the auto-generated ones:

1. Disable the automatic keystore generation:

   keystoreJob:
     enabled: false


2. Create your keystore manually:

   openssl pkcs12 -export -in <client-cert.pem> -inkey <client-key.pem> -out fortify-keystore.jks -name tomcat


3. Create the secret manually with your keystore and configuration files

Post Install Configuration

• Prerequisites:

• Keycloak is available to fortify

  • Make sure you configure a valid redirect URL to

  https://${FORTIFY_URL}/saml/SSO/alias/

  • Make sure you configure a valid logout URL

  • saml_single_logout_service_url_post: http://${FORTIFY_URL}/saml/SingleLogout/alias/ssc`

• Keycloak realm metadata is available from keycloak. To verify please try follow below steps

  • curl https://${KEYCLOAK_DNS}/auth/realms/${REALM_NAME}/protocol/saml
  • with above command you should get a 200 response and also xml file with data to connect to IDP(Identity Provider(Keycloak))

• Keystore password

  • secret name ref:
  • Name: fortify-ssc-secret (auto-generated by keystore Job)
  • Data: ssc-service.jks.password

• Certificate password

  • secret name ref:
  • Name: fortify-ssc-secret (auto-generated by keystore Job)
  • Data: ssc-service.jks.key.password

• Post Configuration:

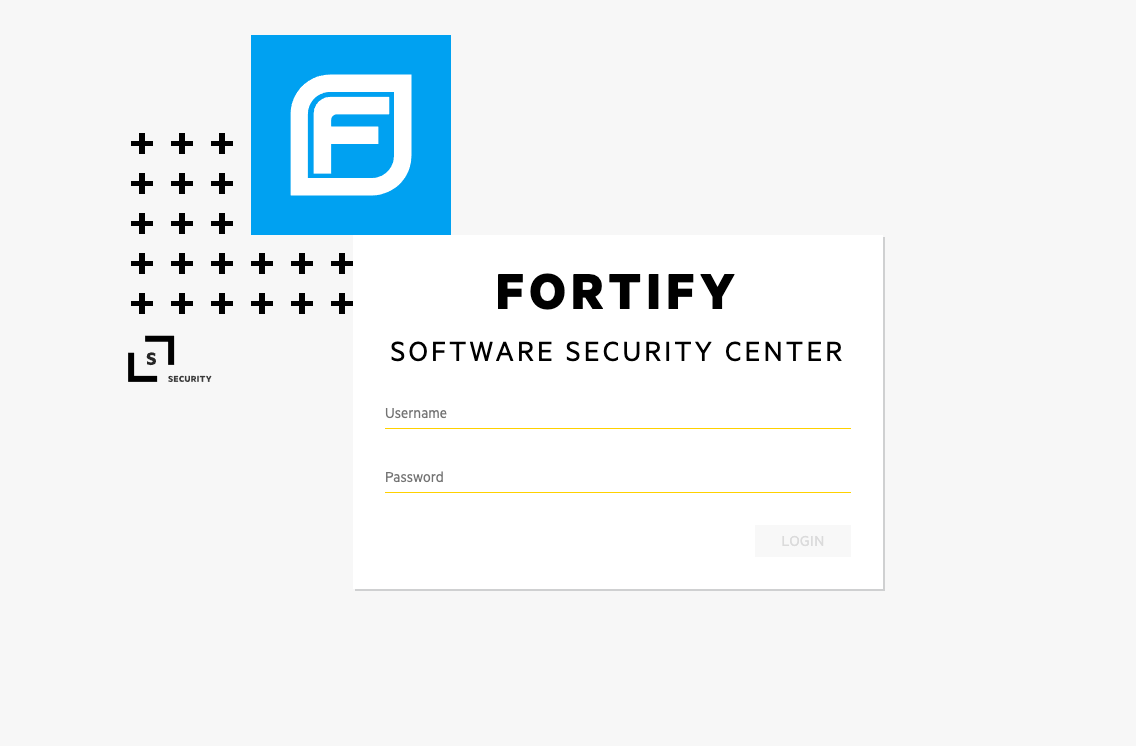

• Login into the Fortify web UI using the default user credentials username/password: admin/admin. It will prompt you to update your password immediately.



• Complete login with new credentials

• Now you need to setup SSO with SAML

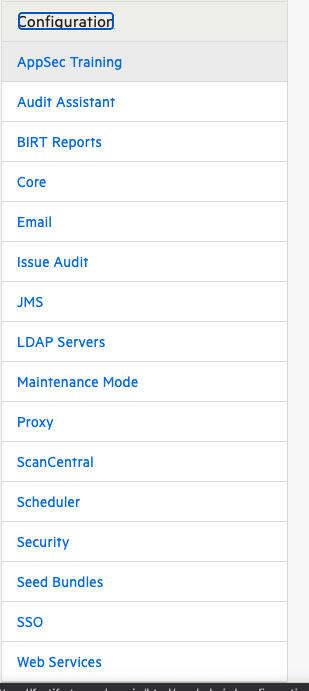

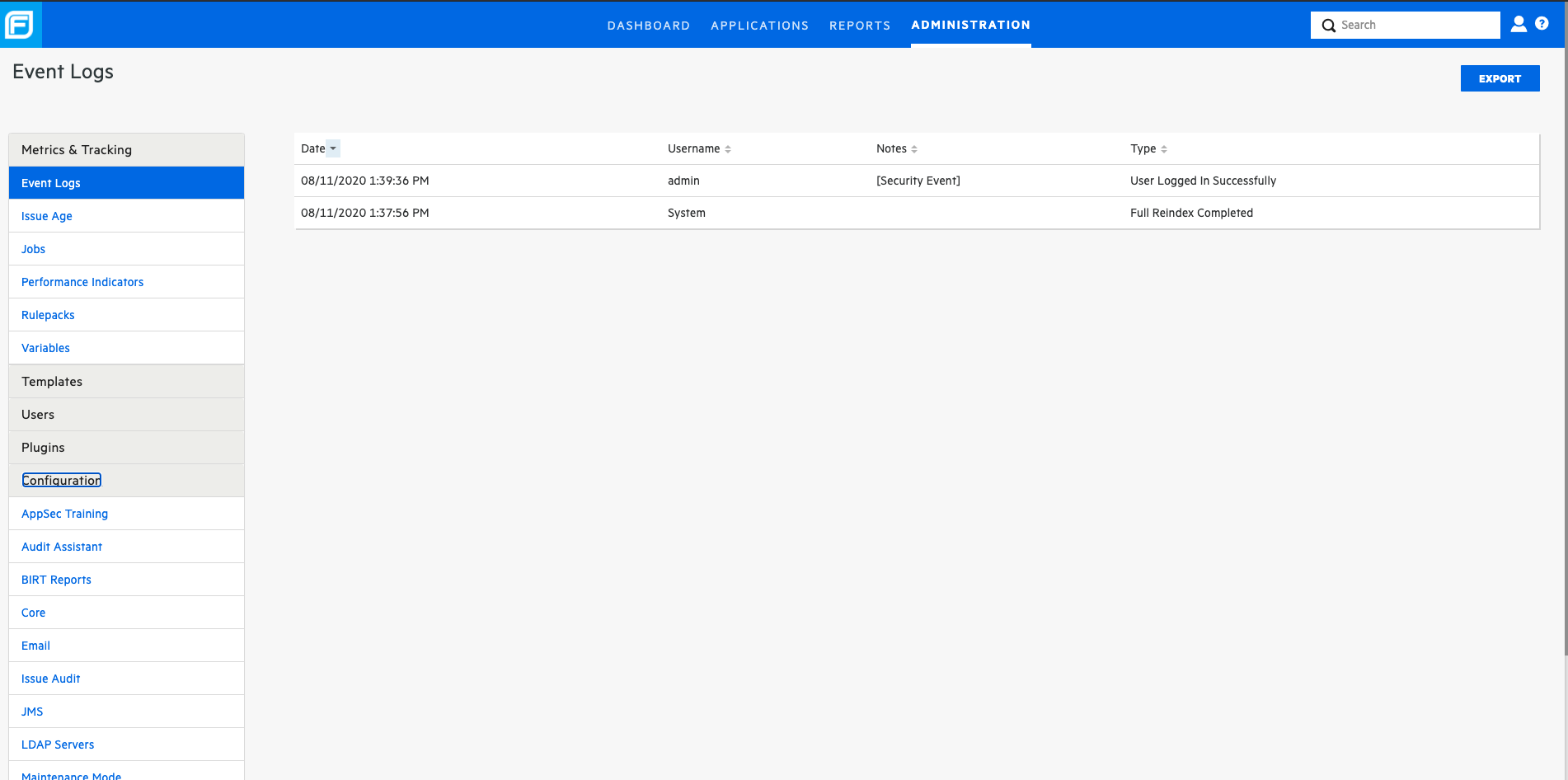

• Navigate to administration page and select configuration on left sidebar of the administration page.

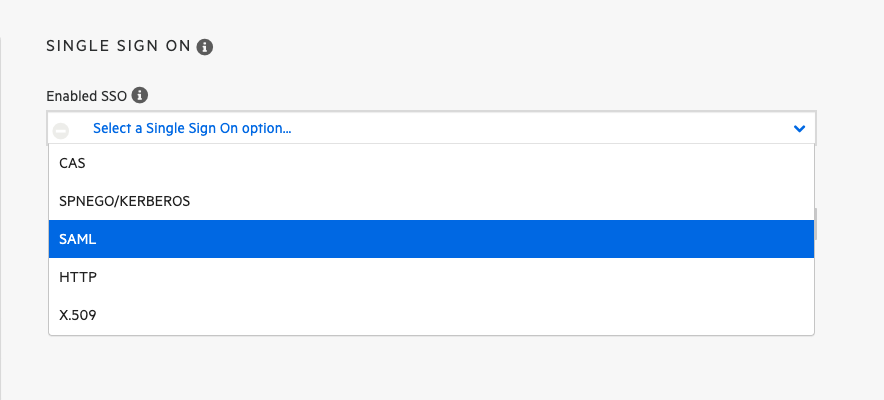

• Select SSO in the configuration section, it will show a drop down menu for SSO options.

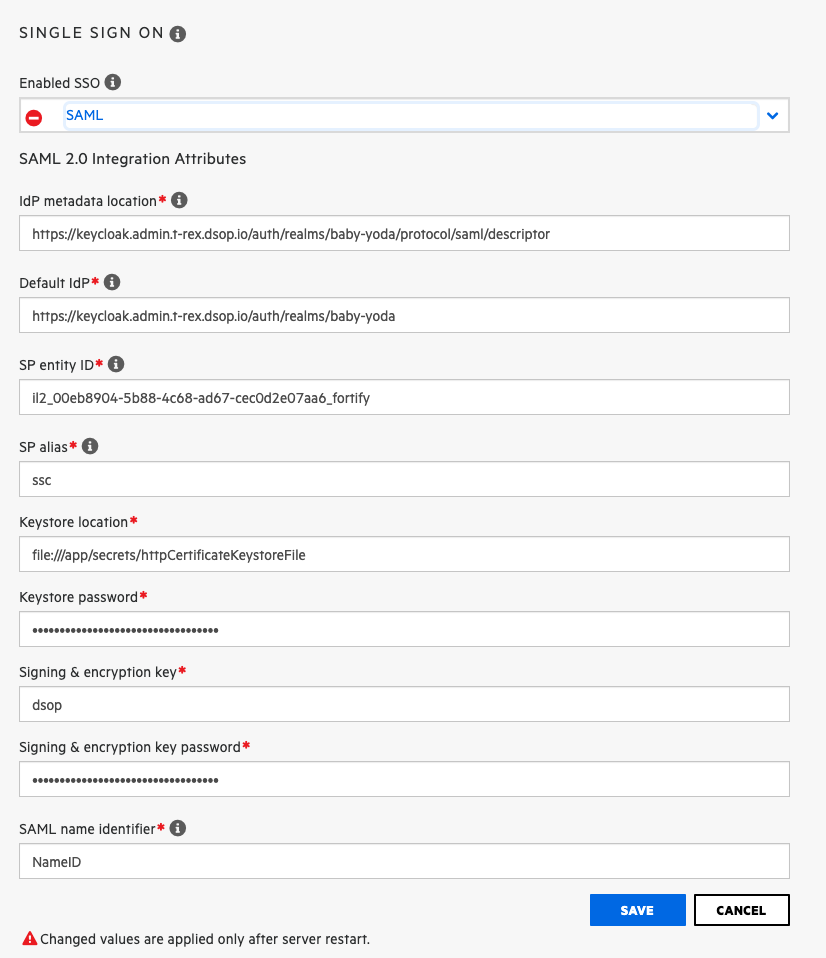

• From the drop down select SAML, by default most of the values are populated already.



• set the keystore password and signing and encryption key.



• Save the config.

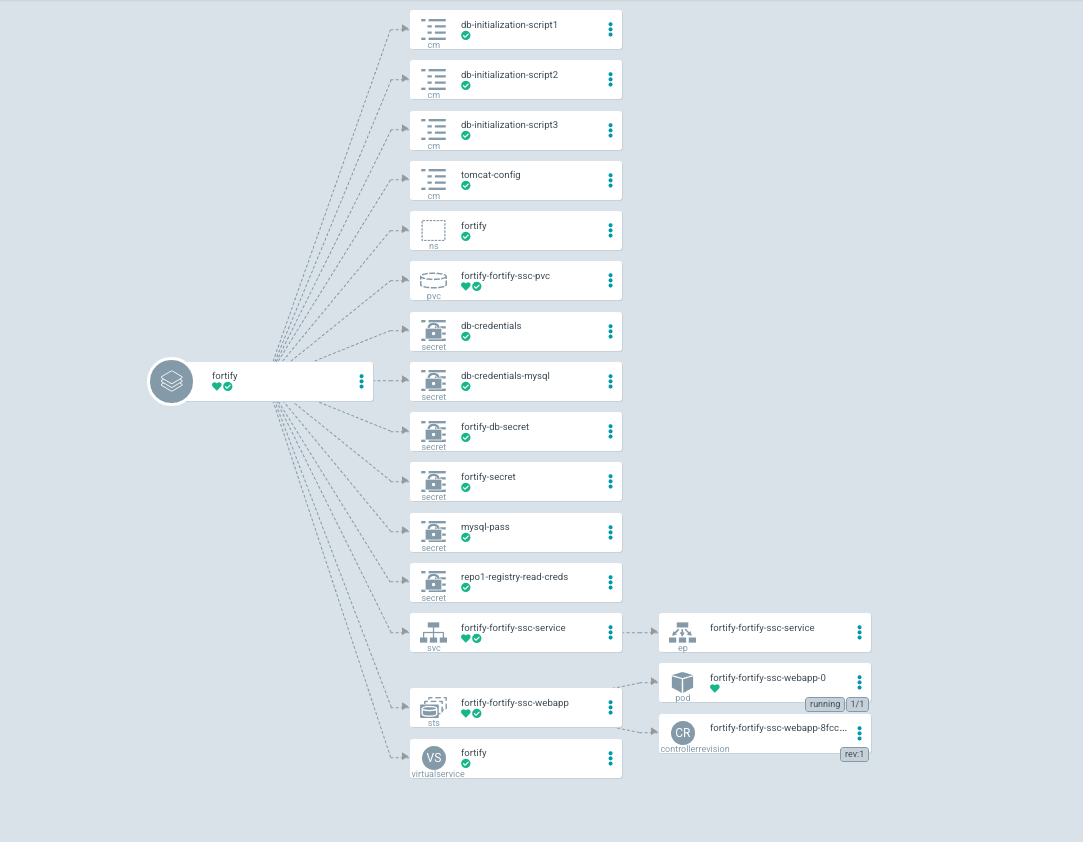

• Now go to argocd and kill the fortify pod.( Note: Just kill the pod to restart service and wait for approx:3 min).





• Now try to access your fortify URL, it will redirect back to keycloak.
